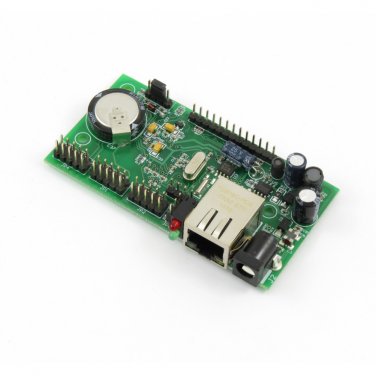

DAEnetIP4 is the next generation multifunctional 10/100 Mb Ethernet device (IP controller) for management and control. It has the usual features we offer for such products like web server, snmp, http/xml, traps and analog/digital i/o. In addition this successor of DAEnetIP1 has some other features like Real Time Clock weekly schedule, 8 x 16 bit counters, 2 x 10 bit PWM channels and standalone work improvements. It is to be used for embedding in other systems (plug-in type) and could be used for industrial and home automation, access control, fire and security, irrigation systems, dimming lights and others. Now with FREE Android and iOS App!
Features:
-10/100 Mb Ethernet interface;
-Auto-MDIX;
-Extended supply voltage range (7.5V - 25V) DC
-Low power consumption - 40mA at 24V DC;
-16 digital outputs;
-8 x 10 bit analog inputs;
-8 digital inputs (16 bit counters);
-2 x 10 bit PWM outputs;
-Real Time Clock (RTC) for schedule (calendar) stand-alone work (up to 30 events);
-Extra status led;
-Web server with secure login authorization;
-SNMPv1 for configuration/monitoring (snmpget, snmpset, snmpbulk, snmptable, snmpgetnext, snmpwalk);
-Secure HTTP/XML API protocol support for read/write relays status;
-JSON protocol - New;
-Supported protocols: ARP, IP, ICMP (ping), DHCP, DNS,NTP;
-Access protection (by IP and MAC address);
-Option for digital outputs states saving and loading on reset;
-Single input may be forwarded to control many digital outputs;
-Sending traps according analog ADC level;
-Scaling (linearization) for the analog inputs to show values in suitable units - New;
-Working temperature range: 0ºC to 70ºC;
-iOS software - DAE-iModules App - http://denkovi.com/dae-imodules
-Android software - DAE-aModules App - http://denkovi.com/DAE-aModules
-Software examples for PHP, JAVA, VB.NET, C#.NET and NI LabView - http://denkovi.com/daenetip4-snmp-ethernet-controller-with-34-digital-analog-io#examples
-Third parity software (Majordomotic, MyDomoticaHd) - http://denkovi.com/daenetip4-snmp-ethernet-controller-with-34-digital-analog-io#third_parity_software
-DAEnetIP4 documentation - http://denkovi.com/Documents/DAEnetIP4/Current-Version/UserManual.pdf
*This product is to be replacement for our popular DAEnetIP1 (deprecated). The snmp commands are different, but the I/O pinouts and ports are the same.
---------------------------------
This item is assembled, tested and in working condition.
We have this item in stock.
