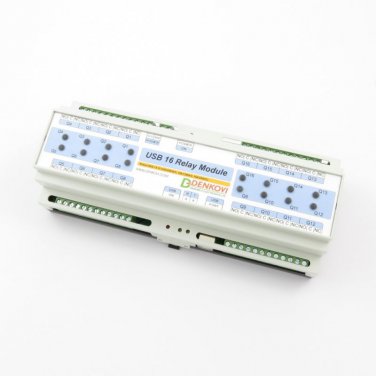

The relay module is with 16 relays (the type is selectable during purchase). The relays are controlled via PC USB port and it is shown as virtual serial port (virtual com port). It is possible to control directly 220V / 120V devices with your PC usb port up to 15A max. There is flexible software for this usb relay module allowing to be designed simple automation project or control from command line. Numerous software examples can be provided (VB6, BCB6, Java, .NET)
Specification:
-16 x SPDT relays - 10A / 250VAC, 15A / 120VAC, 10A / 28VDC;
-Power supply requirements: 12V DC / 600mA
-USB connector: type B
-Converter chipset: FT232RL
-FT232RL optical isolation against communication noises
-Communication: serial USB communication (Virtual Com Port)
-Led-s: Relay Led, Power ON Led, USB ON Led, Rx Led, Tx Led
-Din Rail Box
-Doubled high current tracks
-Size: W=87mm x L=210mm x H=58mm
-Operating temperature range: from -30 ºC to +80 ºC
-Supported by DRM software (Windows 32/64 and Linux 32) - http://denkovi.com/drm-software
-Supported by Denkovi Command line tool (Windows 32/64 and Linux 32) - http://denkovi.com/denkovi-relay-command-line-tool
-Software examples - http://denkovi.com/product/92/usb-16-channel-relay-module-rs232-controlled-box.html#examples
-Documentation - http://denkovi.com/Documents/USB-Relay-16Channels-v3/UserManual.pdf
For customers already purchased the old USB relay boards
Please note this product fully replace our old products:
-USB 16 Relay Board - v1 - http://denkovi.com/usb-16-channel-relay-module-rs232-controlled-ver.1
-USB 16 Relay Board - v2 - http://denkovi.com/usb-16-channel-relay-module-rs232-controlled-12v-ver.2
There is not software (protocol) changes. You can use the same software. However there are several hardware improvements:
-Added option for 24VDC supply
-PCB size (dimensions are shown in the documentation pdf)
-Optical isolation between FT232 and CPU for better communication
-Din rail box option
------------------------------------------------------------------------------------------------------------
This item is assembled, tested and in working condition.
